Cloudflare R2 stores your uploaded images and video outside the container, reachable over HTTPS. Several networks fetch your media from a URL rather than accepting the file directly, and R2 is the only workable option once you run more than one instance. It has a free tier that covers most self-hosted installs.
The bucket itself does not have to be public. PostQueen can serve media from your own domain and read it privately. That is decided in the Decide where media is read from step below, and it is the choice on this page most worth reading twice.
Deciding whether you need it at all? Uploads and Storage compares it with the local disk. This page is the setup, start to finish.
1

Create account and login to the console

Go to the Cloudflare Dashboard, and register if needed, then login.
2

Create a new Bucket

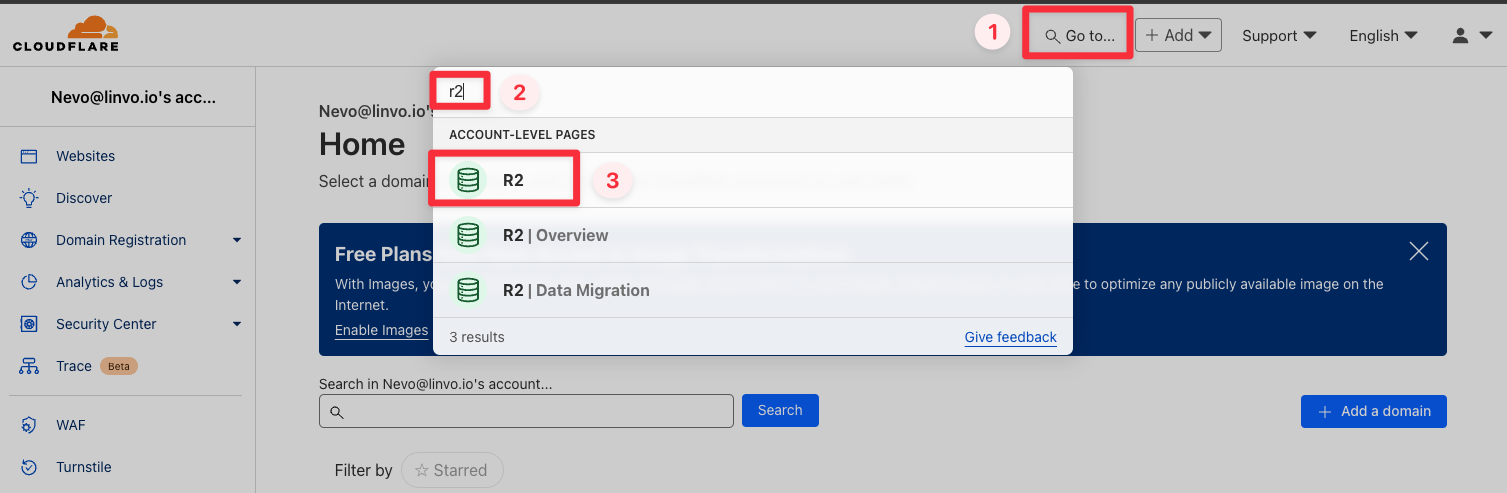

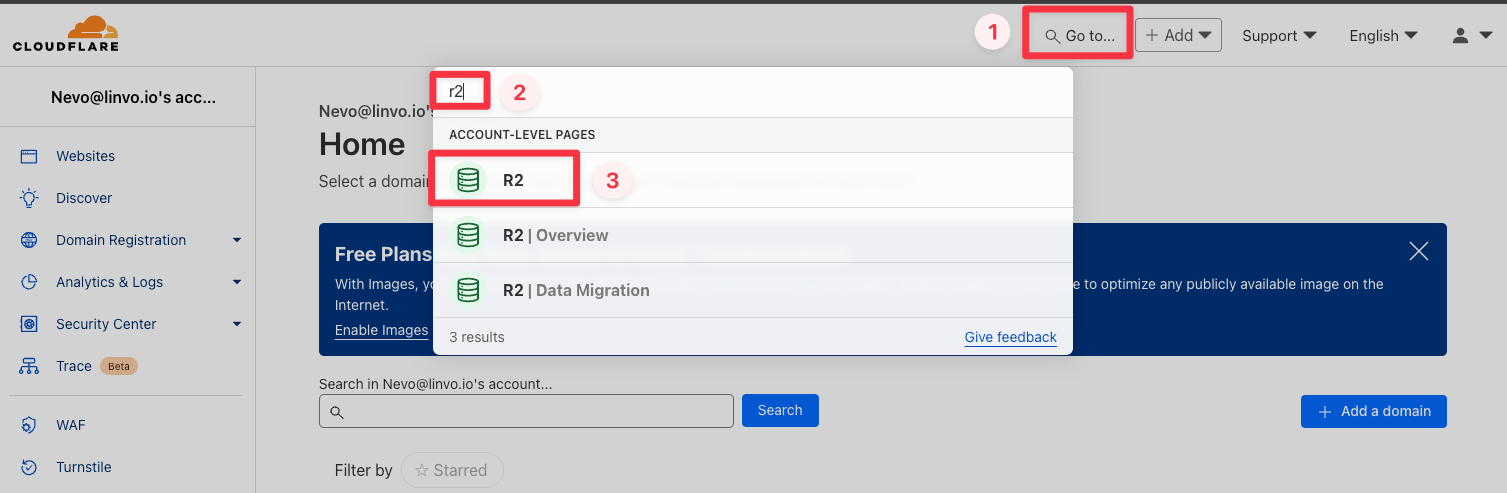

In the dashboard sidebar, head to the R2 page.
R2 Page

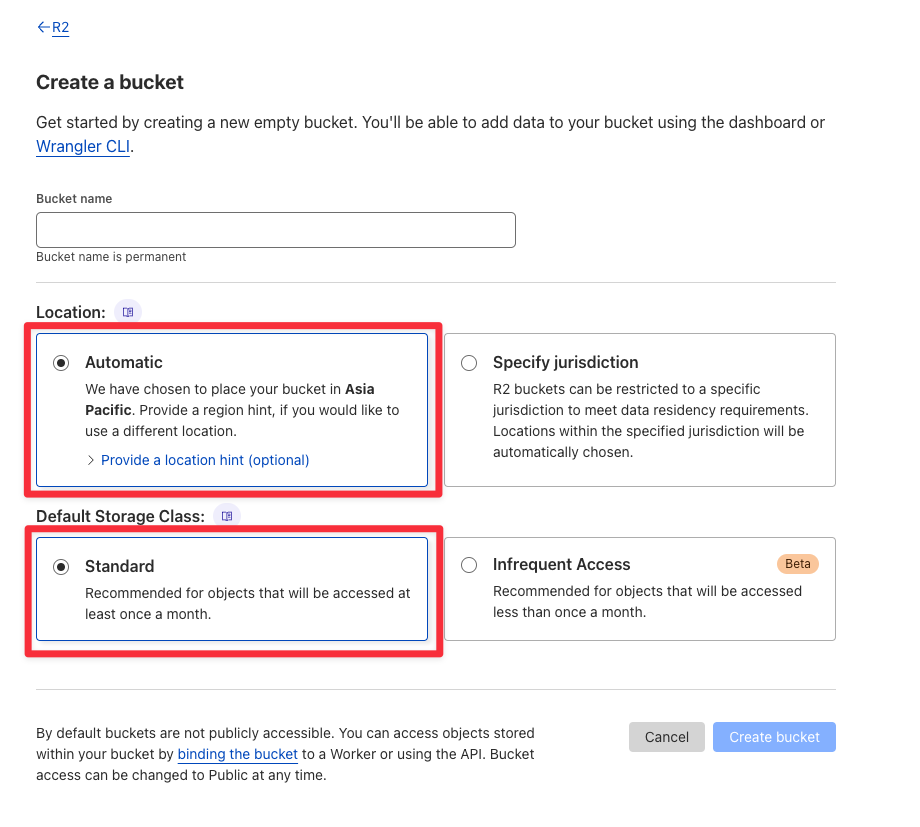

Create a new Bucket.
  • Choose Automatic
  • Choose Standard
Create Bucket
If you need your media to stay in a specific region for regulatory reasons, an EU jurisdiction under GDPR for instance, pick it here, under Specify jurisdiction. A location hint is a best-effort placement, not a guarantee, and jurisdiction cannot be changed after the bucket exists. Jurisdictional buckets also need CLOUDFLARE_JURISDICTION set below.
3

Create your R2 Token

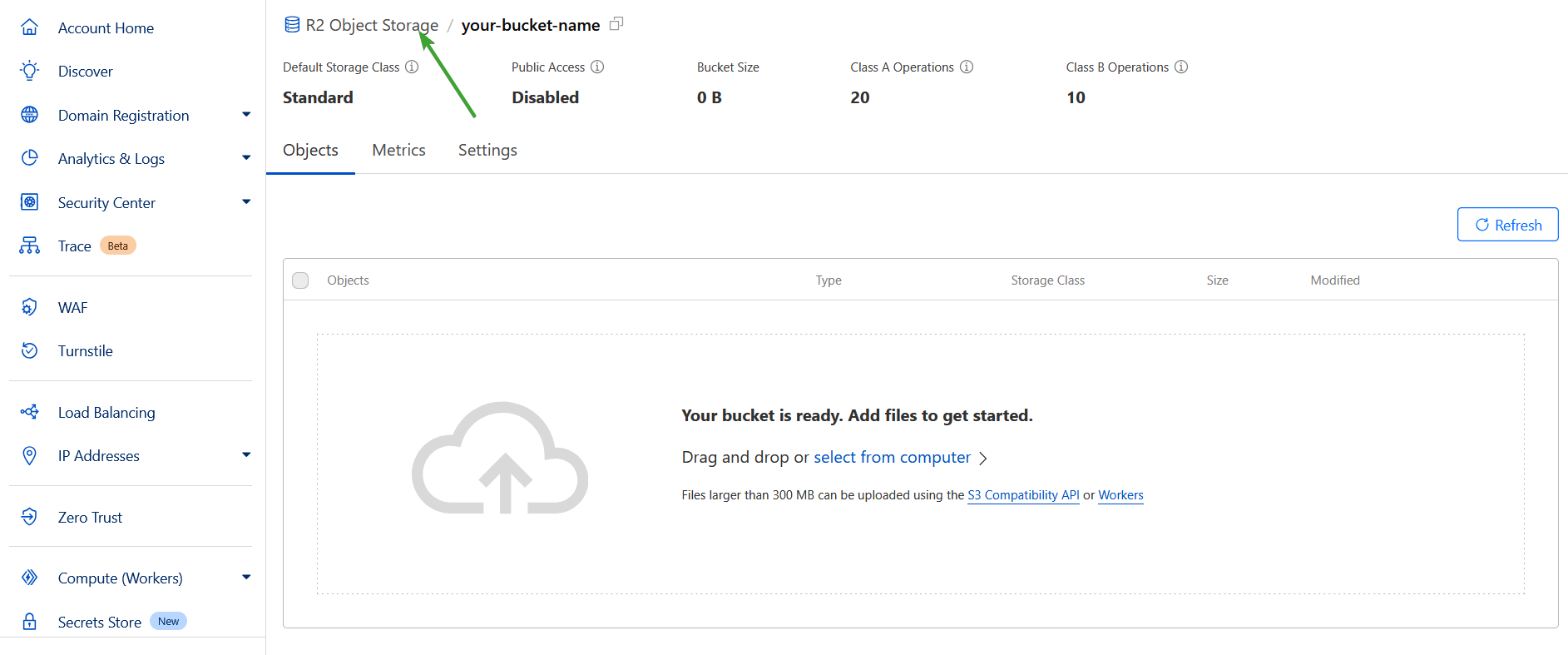

Create your R2 Token by going to R2 Object Storage:
R2 Object Storage

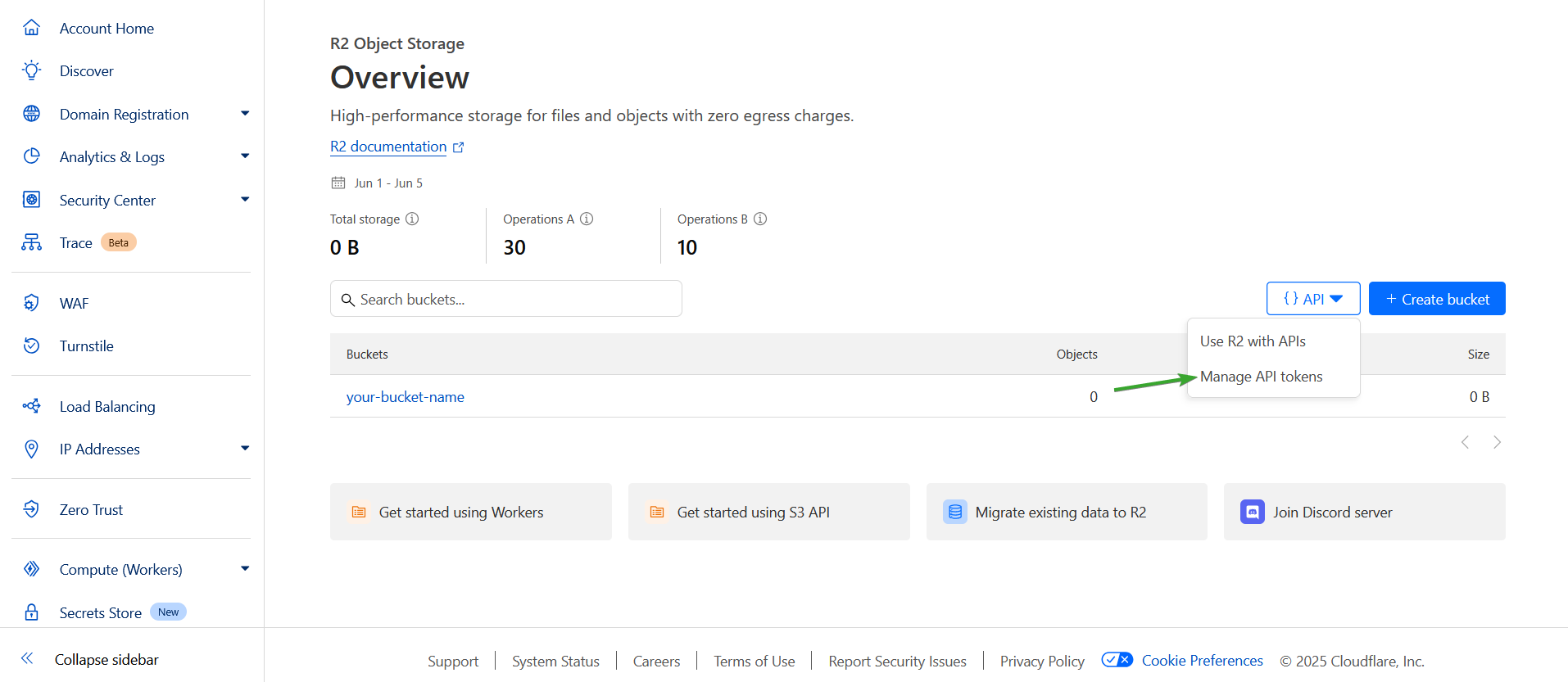

Click on the API dropdown, and select Manage API tokens:
Manage API tokens

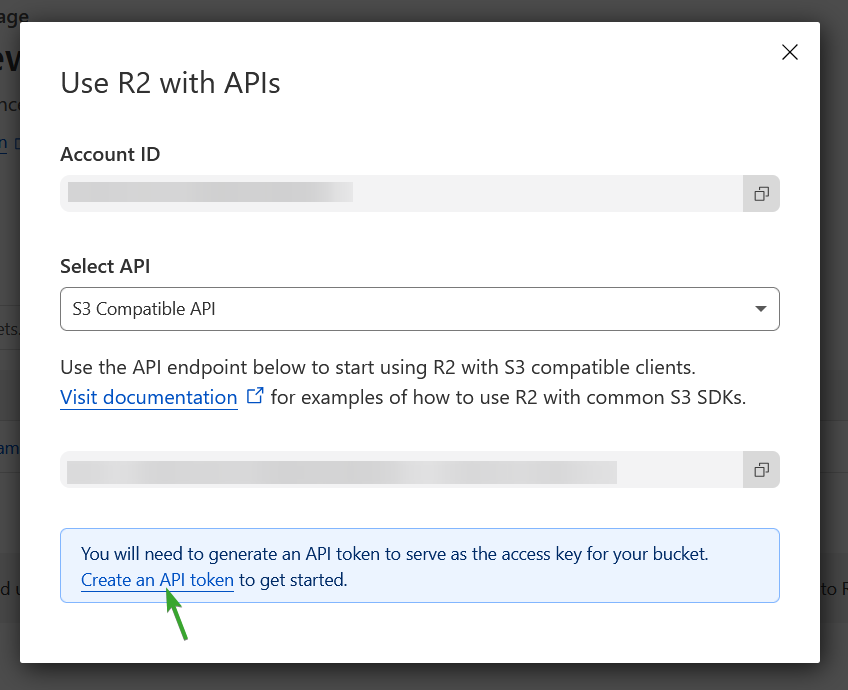

Copy your Account ID for later, and click on “Create an API token”:
Create API Token

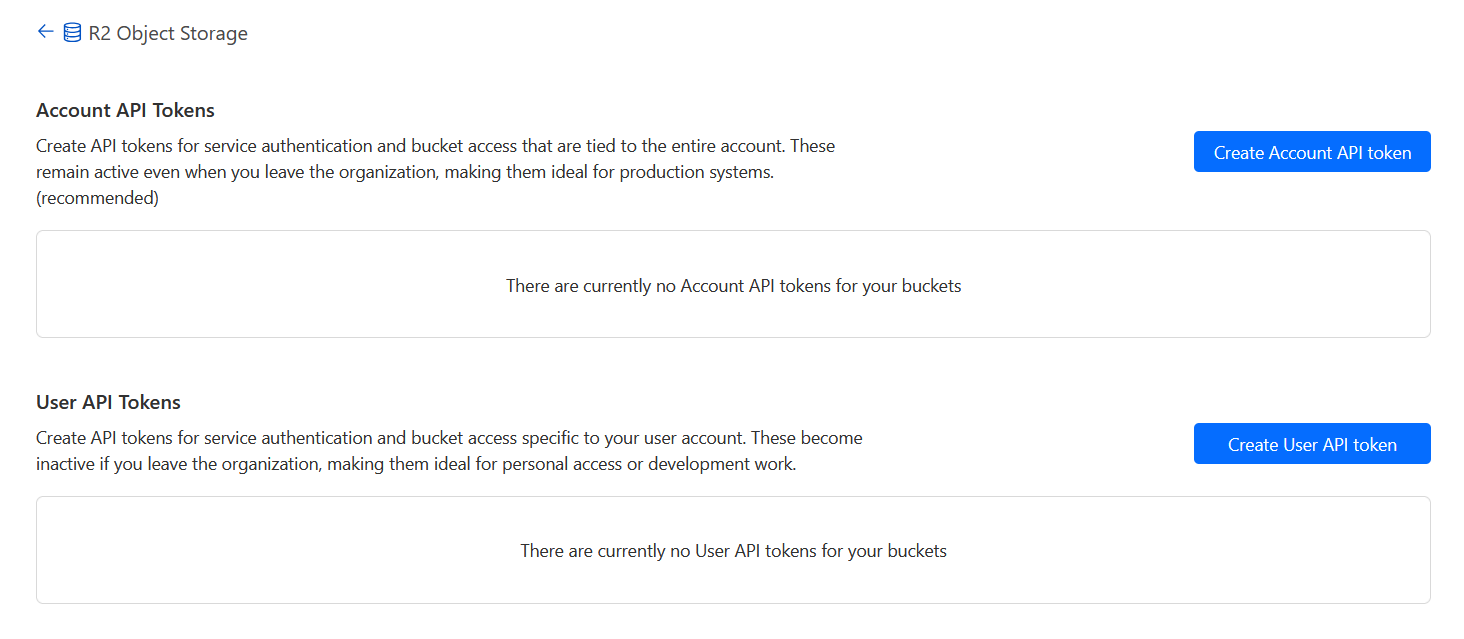

Create an Account API token:
Account API Token

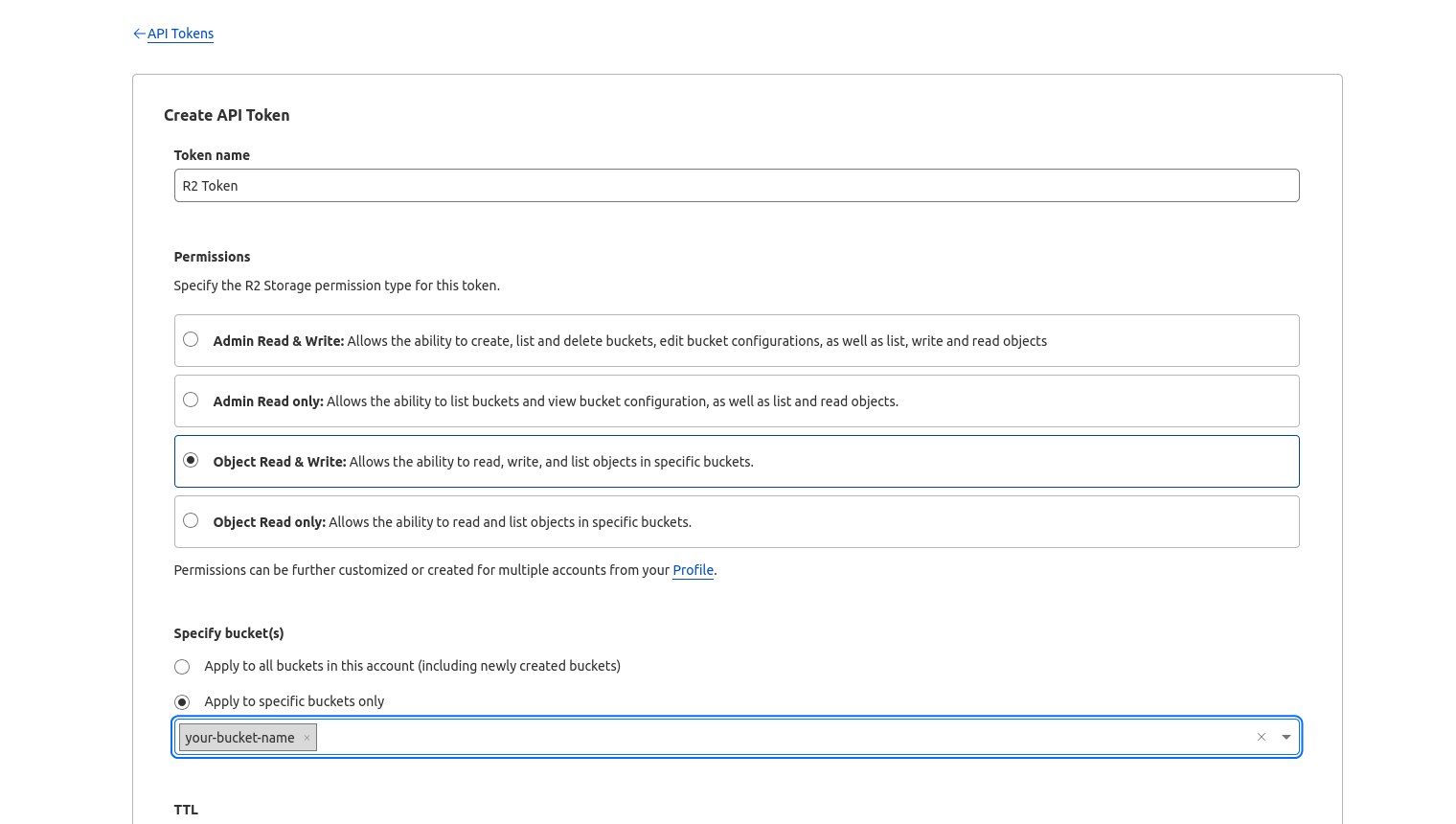

Under “Permissions” choose “Object Read & Write” and under “Specify bucket(s)” search for your created Bucket.
Permissions
Scope it to this bucket, not to the account. “Apply to all buckets” hands whatever holds this token the run of your R2 account, and this one lives in an environment variable on a web server.
Should you later add a bucket for backups, give that its own token rather than widening this one. The two jobs have no reason to share credentials, and a backup tool has no business being able to delete the media it is protecting.
4

Copy your credentials

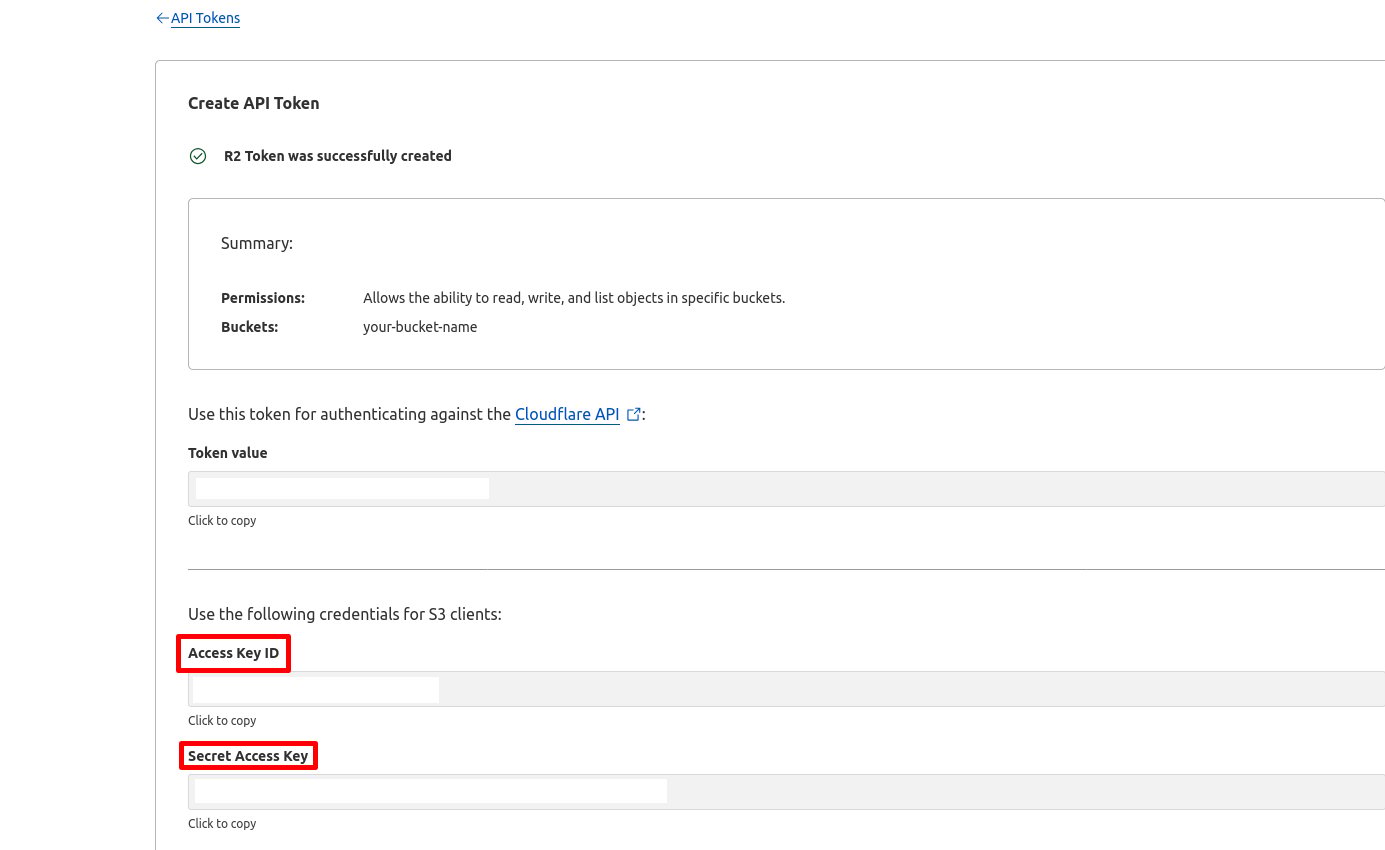

After the R2 Token is created, copy your “Access Key ID” and “Secret Access Key”:
Copy Credentials
Paste the respective information into your configuration.
Leave CLOUDFLARE_REGION as auto unless you deliberately pinned your bucket to one location when you created it, in which case use that location hint instead.
CLOUDFLARE_JURISDICTION is separate from the region and only applies if you chose Specify jurisdiction when creating the bucket. Such a bucket answers only on <account-id>.eu.r2.cloudflarestorage.com; left blank, the app queries the account-wide endpoint and reports the bucket as missing.
5

Decide where media is read from

CLOUDFLARE_BUCKET_URL is the address stored with every media row. It is not only what your browser loads: several networks fetch it with their own servers rather than accepting the file from you. Instagram and Facebook take an image_url, and TikTok photo posts support nothing else. So this address has to be reachable from the public internet, and it is worth choosing deliberately.
Whichever you pick, it must not be the S3 API endpoint (…r2.cloudflarestorage.com). That address refuses unsigned reads, so every image would break.
Serving through PostQueen needs nothing in Cloudflare, just the setting:
The /api prefix is required. Inside the container nginx maps /uploads/ to a local directory and only /api/ reaches the backend.

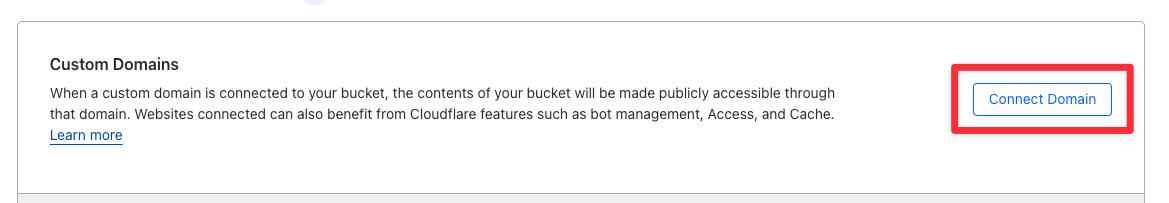

For a custom domain, connect it to the bucket in the R2 settings and use it instead:
Custom Domain
6

Set the CORS policy (only if the browser uploads directly)

By default the browser uploads to R2 itself, using a URL PostQueen signs for it, and that is a cross-origin request the bucket has to allow.
If you run with UPLOAD_VIA_SERVER=true, skip this step. The browser never talks to R2 in that mode, so no CORS policy applies.

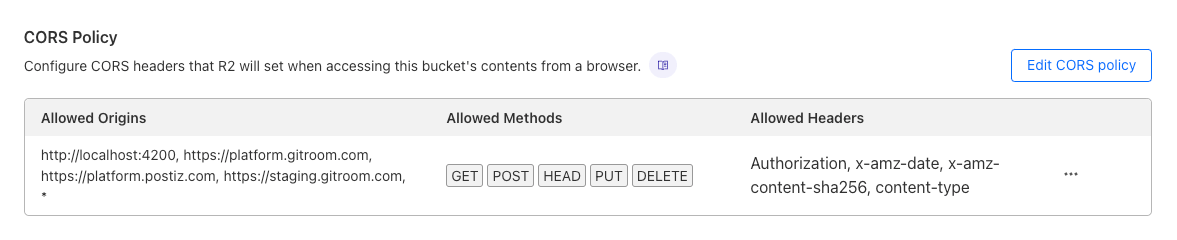

Edit the CORS policy on the bucket and add the following, replacing the origin with your own:
ExposeHeaders is not decoration: a multipart upload needs the browser to read each part’s ETag, and it cannot without this.
CORS Policy
Credentials, a bucket URL and, where the browser uploads directly, a CORS policy are the whole of the R2 setup. Point STORAGE_PROVIDER at cloudflare in Uploads and Storage and new media goes to the bucket.

​
Backing the bucket up

Media that lives in R2 is no longer in a Docker volume, so a volume backup does not include it. Backups and Upgrades covers what that changes.
Give the backup its own R2 token rather than reusing the application’s. It needs to write to wherever backups go and to read the media bucket, nothing more. In particular it has no reason to be able to delete the media it exists to protect.

​
Unfinished uploads

A multipart upload that never completes leaves its parts in the bucket. They appear in no object listing and are still stored, so it is the kind of thing that grows quietly.
Cloudflare adds a default lifecycle rule to every bucket that aborts them after seven days, visible under Settings → Object lifecycle rules. Nothing to set up; worth knowing it is what keeps an interrupted upload from costing you indefinitely.

​
